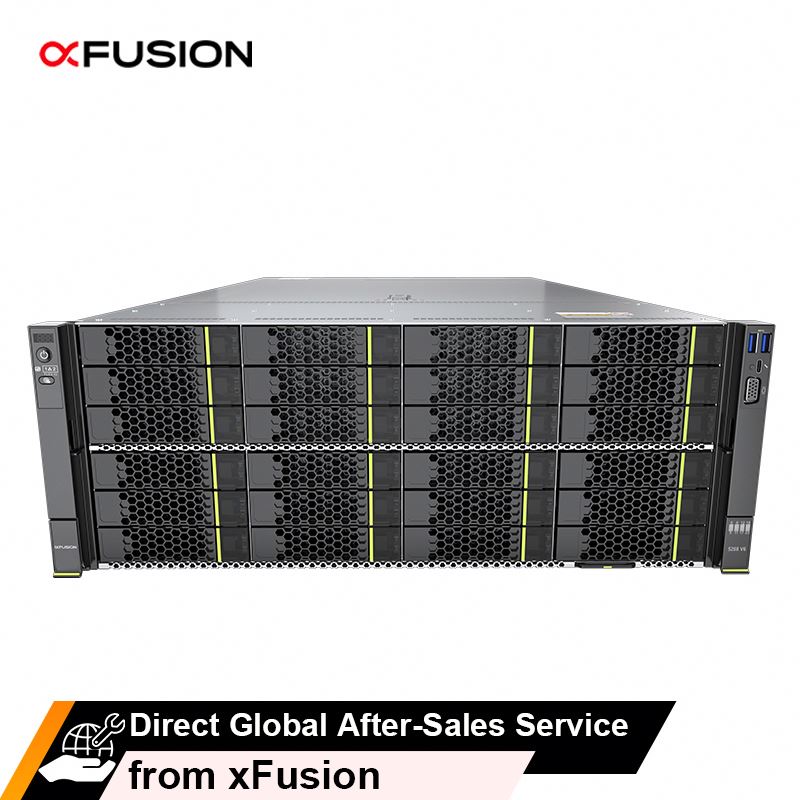

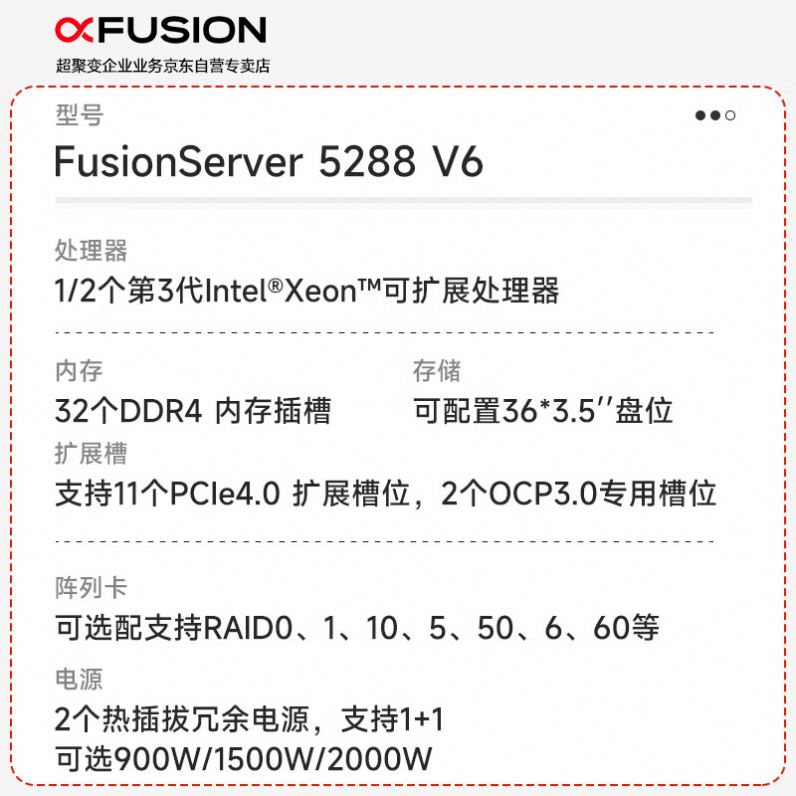

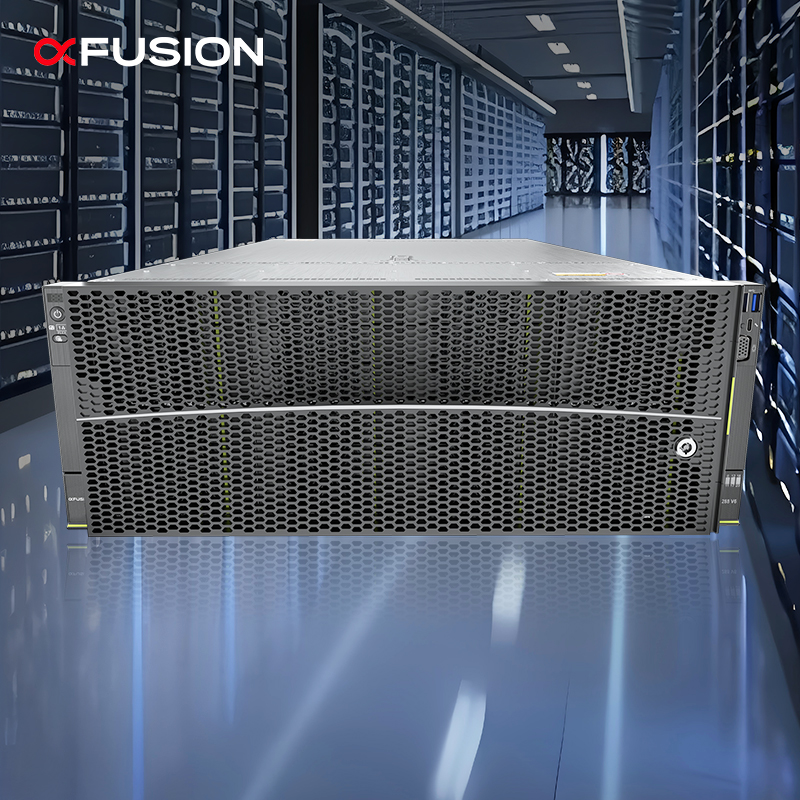

| Server Model | FusionServer 5288 V6 |
| Form Factor | 4U Rack Server |
| Processors | 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W |
| Local Storage |
Various hard disk configurations are supported. The hard disks are hot swappable:
|

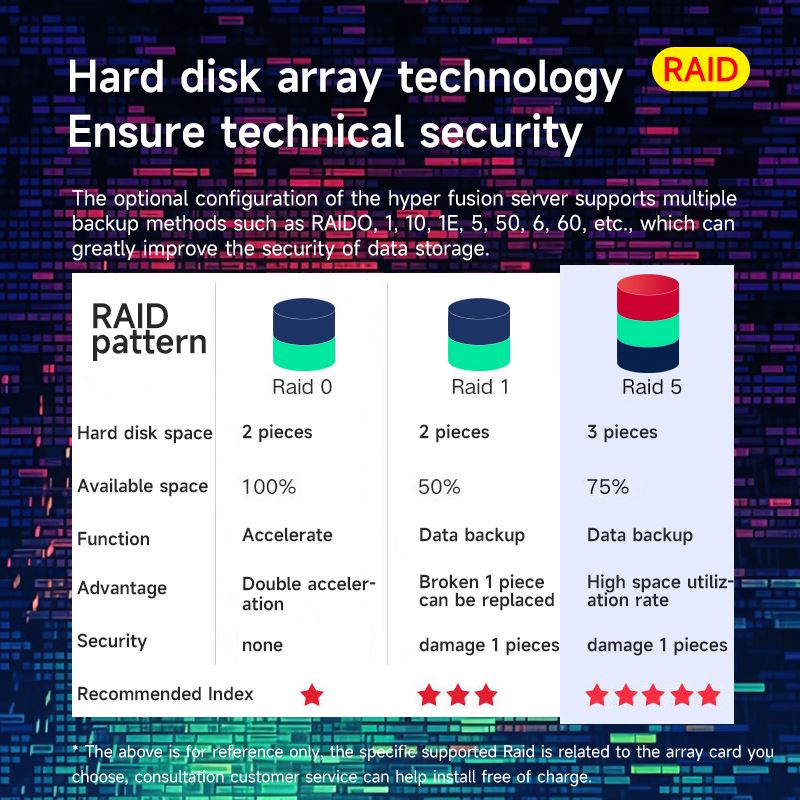

| RAID support | Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration, and multiple network expansion capabilities |
| Network |
OCP 3.0 NIC The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required Supports multiple OCP 3.0 NICs Supports hot swap |
| PCIe Expansion | A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for OCP3.0, and eight standard PCIe 4.0 slots |
| Chip Set | Intel® C621A |
| Fan Modules | Four hot-swappable fans, supporting N+1 redundancy |
| Height X Width X Depth | Chassis dimensions: 175 mm x 447 mm x 790 mm |
| Power Supply Units |
2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows:
|
