DEll PowerEdge R960 Computer Server Intel Xeon Gold 5412U 64GB H755 800W PSU R960 4U Network Rack Server R960

Product Description

Product Parameters

Server Model Dell PowerEdge R960
Processor Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor
Memory Up to 64 DDR5 RDIMMs NVDIMM: Not supported
DIMM speed: up to 4800 MT/s
Storage controllers • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e
• Software RAID: S160
Drive Bays Up to 24 2.5 inch SAS/SATA HDDs/SSDs Up to 24 2.5 inch NVMe SSDs
Up to 8 E3. S NVMe hard drives Back: Up to two 2.5 inch hot swappable SAS/SATA or NVMe HDDs
Internal: USB and internal BOSS-N1 (2 M.2 NVMe) are used as startup disks. No IDSDM.
Bandwidth: Up to 32Gb NVMe/24Gb SAS/6Gb SATA
Power Supplies 1100W, 1400W, 1800W, 2400W, 2800W
High availability Hot swap/RAID controlled hard disk, high power air cooling configuration, PSU, BOSS-N1 (2 M.2 MVMe
Dimensions 4U x 434mm x 812mm
Form Factor Form Factor
Embedded Management Licensing options for iDRAC9 Enterprise Edition and Data Center Edition; OpenManage Enterprise and plug-ins (Power Manager, SupportAssist, and Update Manager) iDRAC Direct, Quick Sync 2.0.
GPU Options GPU not supported
Front Ports VGA, 1 USB 2.0, iDRAC Direct mini USB, ID button and LED
Rear Ports VGA, 1 USB 2.0, 1 USB 3.0, management RJ-45, 2 LOM RJ-45, 1 serial port (optional)
Internal Ports OpenManage Mobile
Embedded NIC Internal Ports
PCIe Up to 8 PCIe Gen4 or Gen5 slots without SNAPI No CXL
Warranty 3 years

Products Description

Dell PowerEdge R960 Server

Dell PowerEdge R960 Server

  • The R960 is powered by four (4) Intel® Xeon scalable processors in a 4U air-cooled form factor with superior vertical scaling capabilities to power businesses. Develop and drive data-driven initiatives to drive business-critical operations.
  • The R960 has a maximum number of CPU cores of 60, can support 64 DDR5 DIMMs (a total of 16 TB of memory), and can run large in-memory databases, eliminating the need for slower I/O database access.
  • By supporting up to 24 NVMe drives, DDR5 DIMMs, 12 PCIe 5.0 slots for I/O expansion, LOM, and industry standard OCP to expand business needs and give customers the flexibility to connect to the network.
  • Support for fast 1:1 CPU-I/O communication via PCIe Gen5 adapter.

Product Display

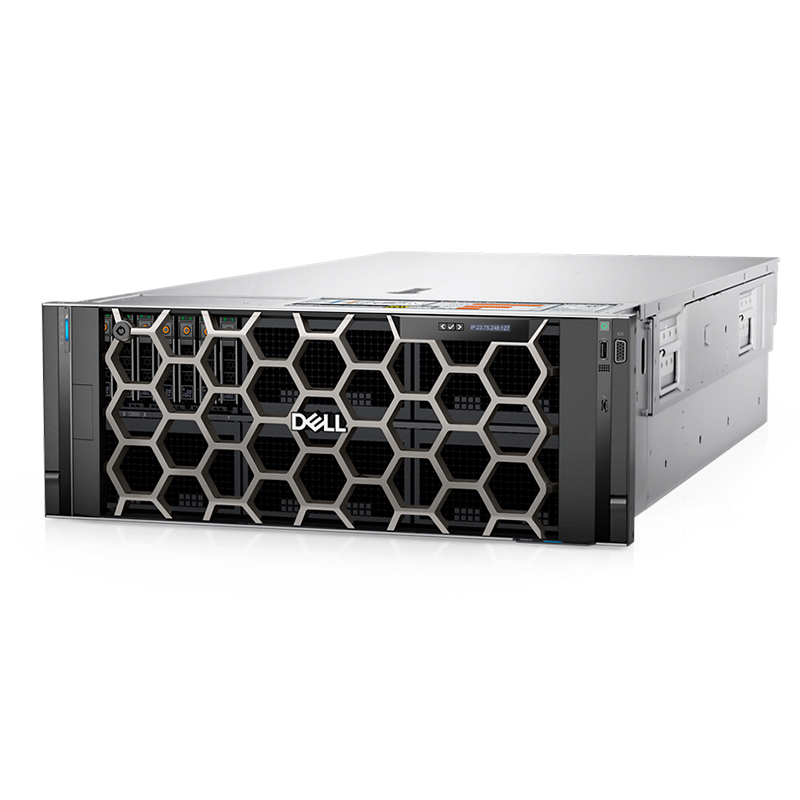

Product Display 1

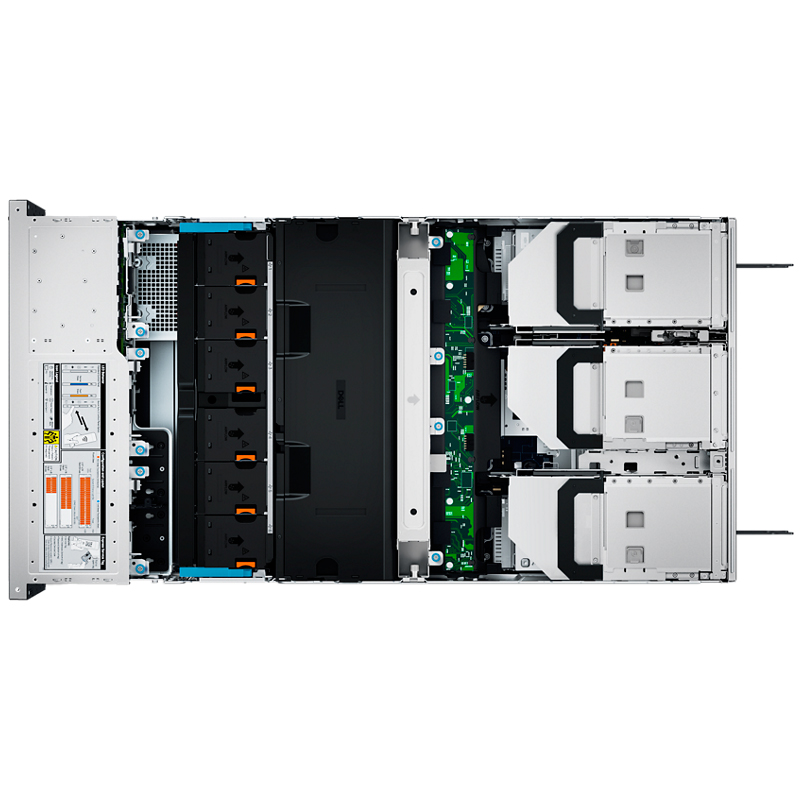

Product Display 2

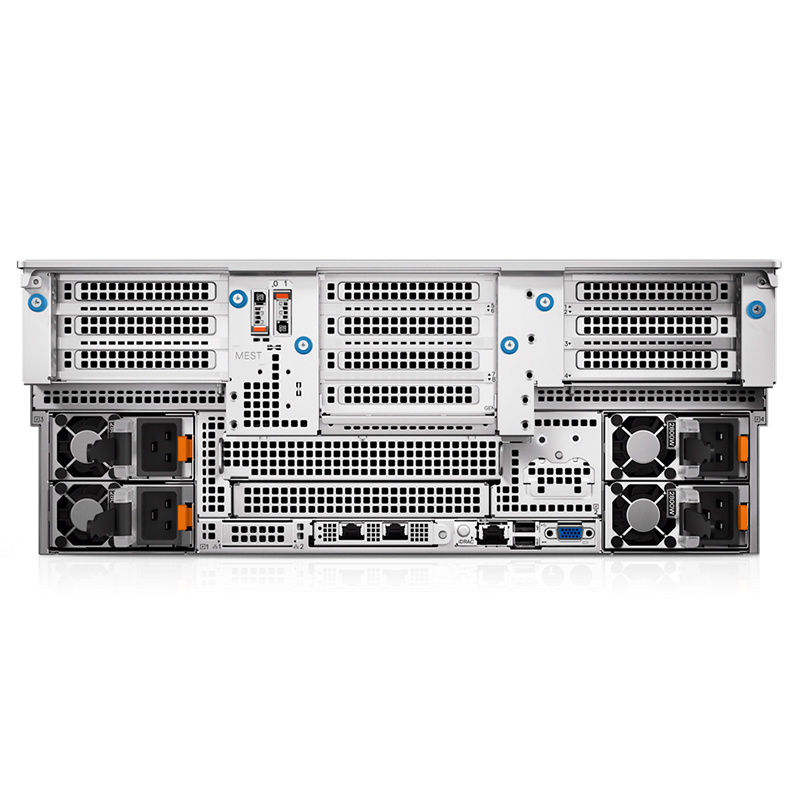

Product Display 3
Product Display 4
Product Display 5
Product Display 6
Product Display 7

Application Scenario

Application Scenario

Company Profile

As a leading integrated IT solutions provider, we combine cutting edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top-tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.

As authorized partners for top-tier global IT brands, we provide:

  • Computing servers
  • Network storage systems
  • Network switches
  • CPU, RAM, Hard Drives, and other critical accessories
R&D Infrastructure

Exhibition

Exhibition

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packing Solution 1
Packing Solution 2

FAQ

Q1: When can I get the quotation?
A1: We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or message so we can prioritize your inquiry.
Q2: What warranties do you offer on your systems?
A2: Our complete hardware systems come with a 3-year replacement warranty. We maintain a reliable supply chain to promptly address any after-sales technical problems.
Q3: Are all component memories and parts original brand?
A3: Yes, all memories utilize original brand chips. We conduct strict, comprehensive testing on every component before each delivery.
Q4: What payment methods do you support?
A4: We accept a variety of payment methods including credit cards, wire transfers (T/T), and other secure global transaction channels to ensure safe processing.
Q5: What is the Minimum Order Quantity (MOQ) for custom/OEM orders?
A5: MOQ varies depending on the specific product lines. Let us know your criteria, and we will do our best to meet your goals. Small testing orders are also welcome.
Q6: How do your prices compare to the local market?
A6: Having specialized in this industry for years, we prioritize long-term quality over quick margins. While some products appear identical, the internal architectures and tiers differ. We balance price with premium internal configurations to offer the best cost-to-performance value.
